Expansion calculator

This calculator allows you to work out the potential expansion of all our systems, together with the Branch leg / Expansion loop size that would be needed to cater for this expansion.

Pipe material

Change in length expansion / contraction (mm)

0.00

Pipe size

Minimum length bend / branch leg B (fig, 1 & 2) (m)

0.00

Pipe length L (m)

Minimum leg length expansion loop C (fig, 3) (m)

0.00

Temperature variation (°C)

Minimum width expansion loop
C / 2 (fig, 3) (m)

0.00

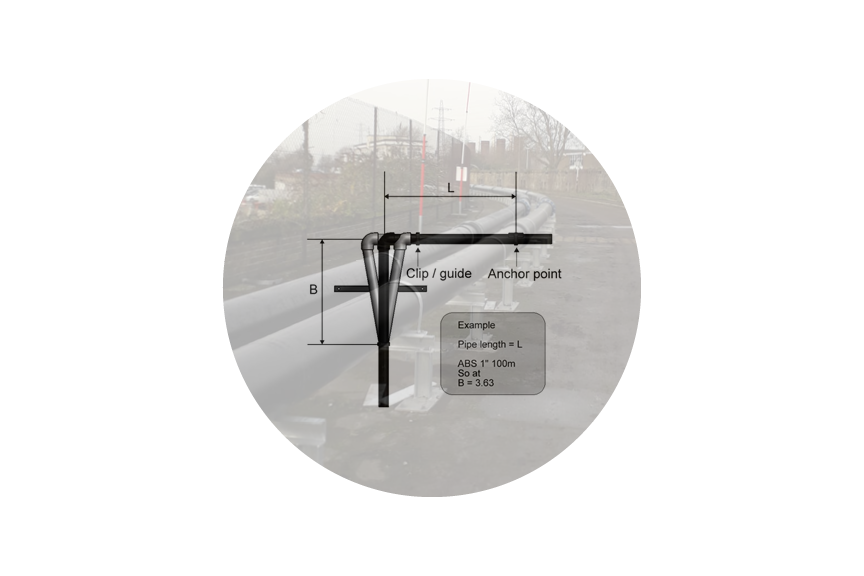

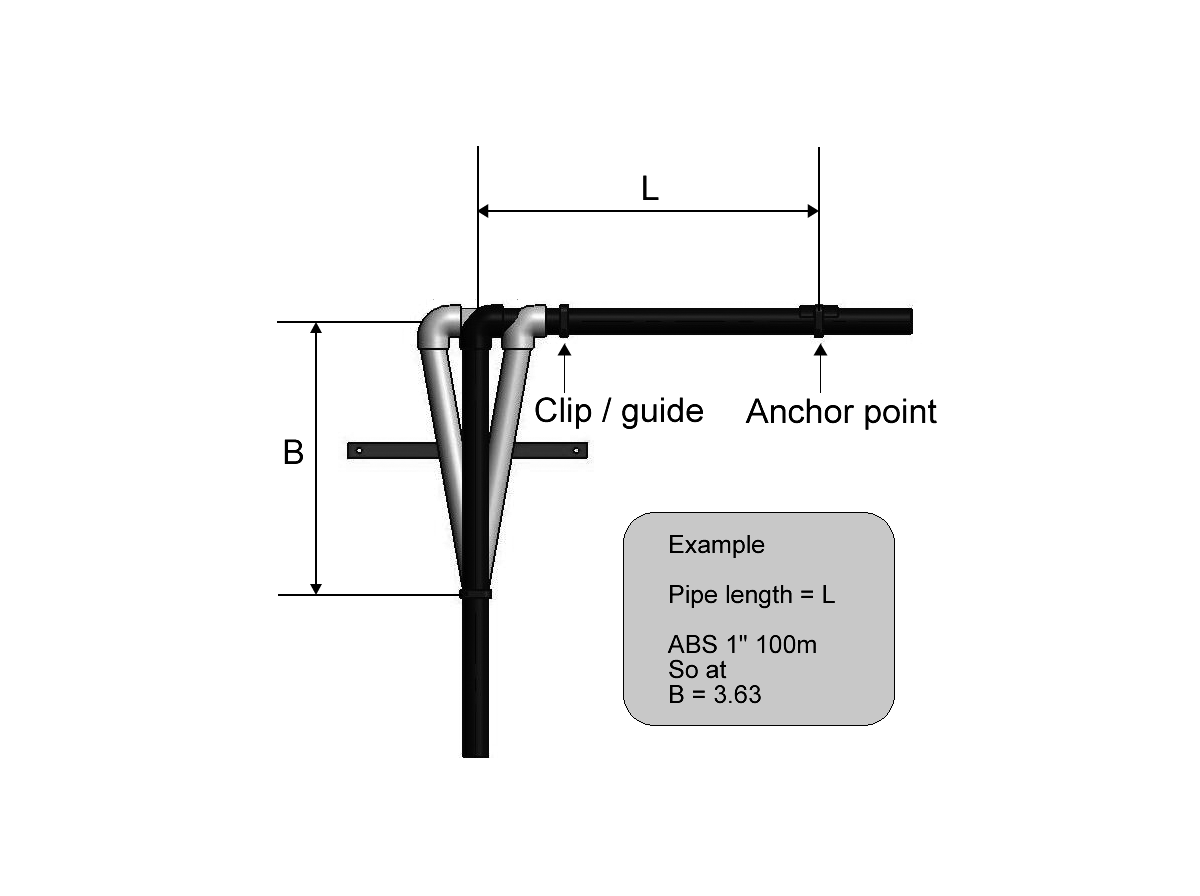

Change in direction (fig 1)

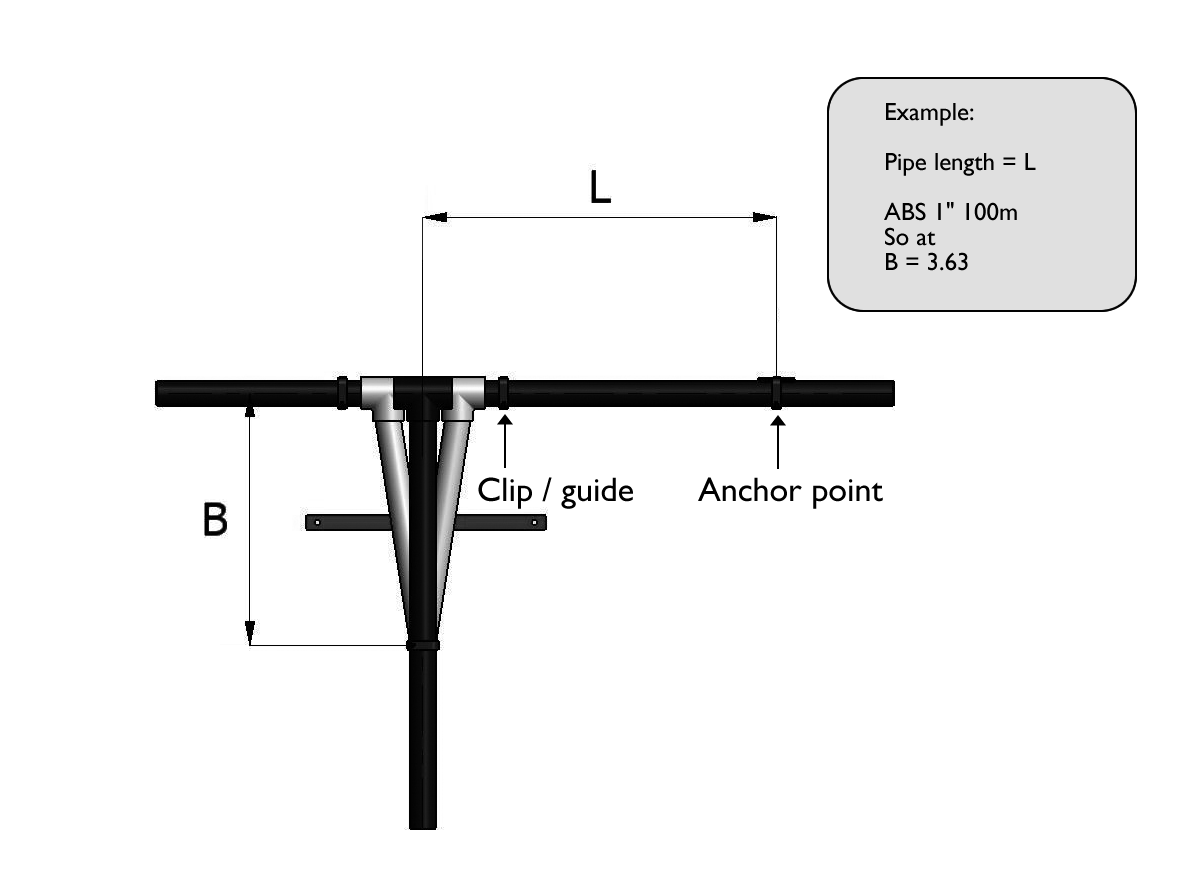

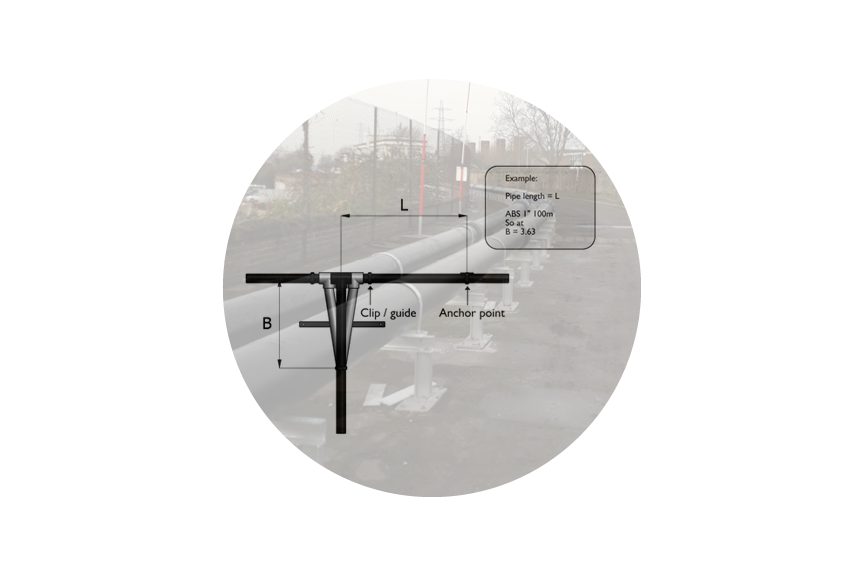

Branch (fig 2)

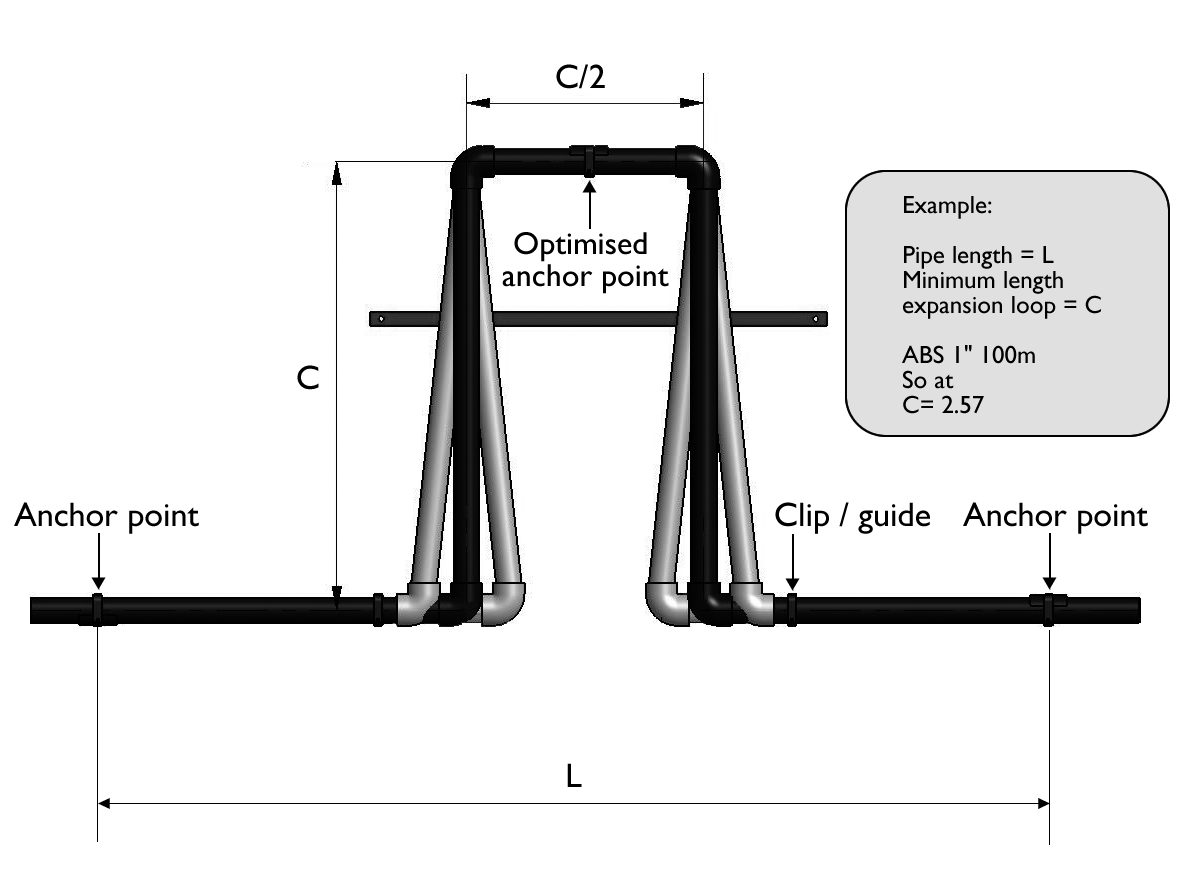

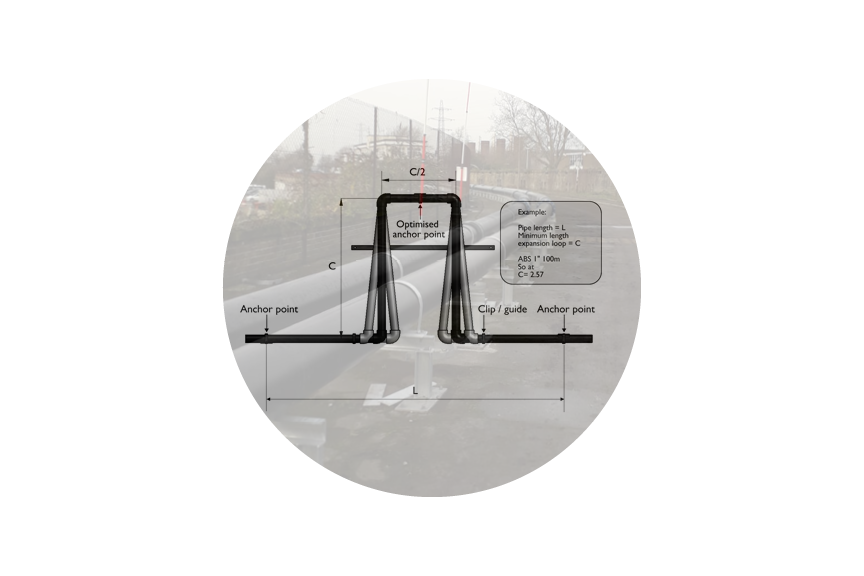

Expansion (fig 3)
